Products center

FE Fiber Media Converter

Type:FCM-F1 Message

Description:1*FE+1*100Base-S/LX Ethernet Switch（Desktop Tpye），Built AC220 or DC48V power supply

Product Description
                The device is Ethernet IEEE802.3 media transceiver to achieve media conversion or extending network transmission distance between two kinds of media, which are 10/100Base-T UTP and 10/100Base-FX or 10/100Base-T UTP and 10/100Base-FX. It mainly used for fiber network far distance (20/40/60/80/120km) transmission, supports 10/100M or 10M, 100M transmission rate. Fiber port and UTP can work through 10M or 100M rate
Functional Properties

? Automatically adapt to 10Mbps and 100Mbps environment, upgrade network easily;

? Support full-duplex and half duplex network communication, with auto-negotiation capability;

? The Ethernet interface supports jumbo frames (1600bit), which can match with the switch product complied  with IEEE802.10 protocol

? Support the LFP (Link Fault Pass Through) function ,when the fiber used connecting transceiver and UTP  has fault, transceivers will notify

       the other end indicating fault information

? With Fiber Alter function, that is, after not receiving optical signal automatically cut off optical circuit (opened  on network management);

? Support FX half/full duplex and link fault alarm function switch optional

? Support UTP cross connection switch optional, convenient for system debugging and setup

? Low power consumption, Low heating, can be stable work for a long time;

? Single-core optical fiber and internal and external power optional, expands user's needs

Technical Parameters

u   Ethernet UTP Interface

    Interface rate:              10/100 M, half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  RJ45, support Auto-MDIX

u  Optical Ethernet interface

    Wave Length:          1310nm, 1550nm

    Interface rate:              100 M, half/full duplex

    Interface Standard:      Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

    MAC Address Capability: 4096

    Connector:                  FC/SC

    Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel.

    Transmission distance may also be limited by fiber optic bandwidth.

u   Power

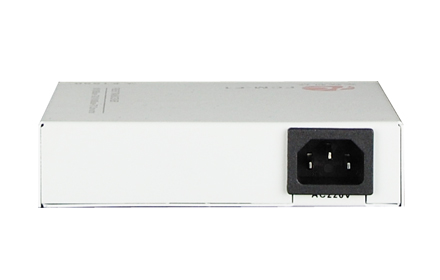

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

u   Dimension

   Product size:   136 X131 X31 mm(WXDXH)

   Simple packaging: 295X225X84mm( WXDXH)

   Piece weight:  0.5KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)


Application Scheme

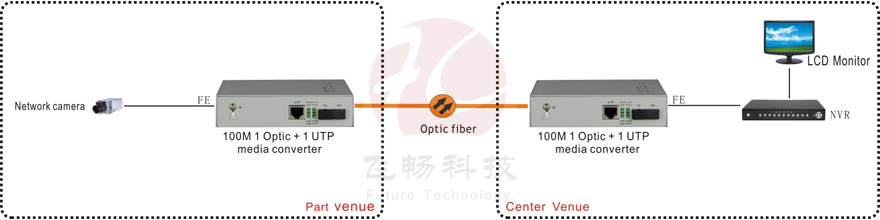

Applications 1

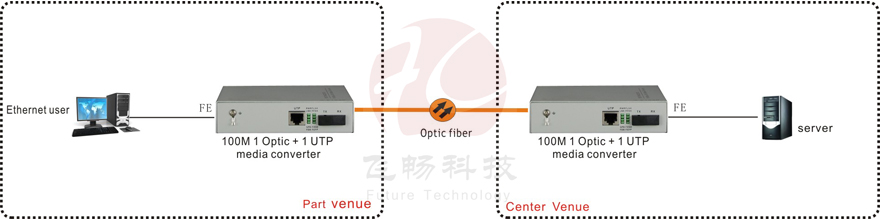

Applications 2




DataSheet Download
?
