Products center

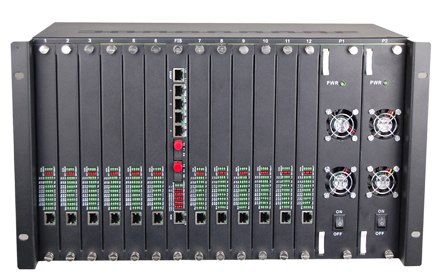

360Voice+4FE Fiber MUX

Type:FCP-O360/S360 Message

Description:6U rackmount multiplexer，360 * thelephone，12 line phone card，30 channel phone access/card，4*100/1000 Mbps Ethernet，4E1，Console or SNMP

Product Description
                  The series equipment Provide 360 channel Phone，4 channel 10/100M fast Ethernet(line speed 100M)2 expansion interface(RS232/RS485/RS422 asynchronous data on-off switch signal etc…）two fiber interface with 1+1 backup function SNMPv1/2/3 manage Ethernet interface can exchange for each other and VLAN division The working is reliable stable and low power consumption high integration small size easy for installation and maintenance.
Functional Properties

Ø  based on self -copyright  IC

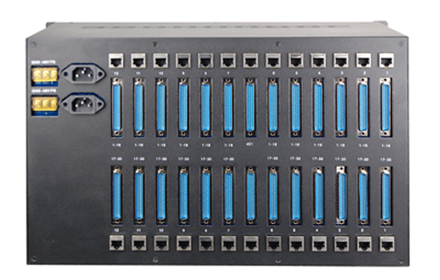

Ø  The equipment is 6U high and 19 inch length include one fiber card(include SNMP) and 12 Pcs 30 FXO/FXS card.

Ø  Maximum configured to 12*30=360 channel phoneand 4 10/100M ethernet interface2 serial interface.

Ø  360 Channel voice access supports caller ID feature and reverse polarity billing functions

Ø  Support various sites mutual number allocation function

Ø  Voice port supports FXO and FXS port FXO port docking with program-controlled switchboard FXS port connected to the user's telephone

Ø  4Channel Ethernet interface is switch interface support VLAN

Ø  Ethernet interface is 10/100Mduplex/half duplex adaptive

Ø  Can command the remote interface loop back to maintain the circuit

Ø  The transmission distance is up to 2-120Km without interruption

Ø  AC 220V DC-48V DC24V can be optional

Ø  DC-48V/DC24V power has polarity automatic detection function you can install the device without differentiation

     between positive and negative polarity.

Ø telephone interface with lightning protection lightning reached 17626.5 (IEC61000-4-5) Short circuit current wave 8 / 20μs

      open-peak output voltage 6KV standards.



Technical Parameters

u  Fiber

         Multi-mode Fiber

    50/125um 62.5/125um

    Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber attenuation (3dbm/km)Wave Length: 820nm

    Transmitting power: -12dBm (Min) ~-9dBm (Max)

    Receiver sensitivity: -28dBm (Min)

    Link budget: 16dBm

        Single-mode Fiber

    8/125um 9/125um

    Maximum transmission distance: 40Km

    Transmission distance: 40Km @ 9 / 125um single mode fiber attenuation (0.35dbm/km)

    Wave Length: 1310nm

    Transmitting power: -9dBm (Min) ~-8dBm (Max)

    Receiver sensitivity: -27dBm (Min)

    Link budget: 18dBm

u  E1 Interface

    Interface Standard:      comply with protocol G.703;
    Interface Rate:             n*64Kbps±50ppm;
    Interface Code:            HDB3;

    E1 Impedance:             75Ω (unbalance) 120Ω (balance);

    Jitter tolerance:            In accord with protocol G.742 and G.823

    Allowed Attenuation:   0~6dBm

u  Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX

u  FXS Phone Interface

    Ring voltage: 75V

    Ring frequency: 25HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u  FXO Switch Interface

    Ring detect voltage: 35V

    Ring detection frequency: 17HZ-60HZ

    Two-line Impedance: 600 Ohm (pick up)

    Return loss: 40 dB

u   Power

    Power supply: AC180V ~ 260V；DC –48V；DC +24V

    Power consumption: ≤10W

 u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)













Application Scheme

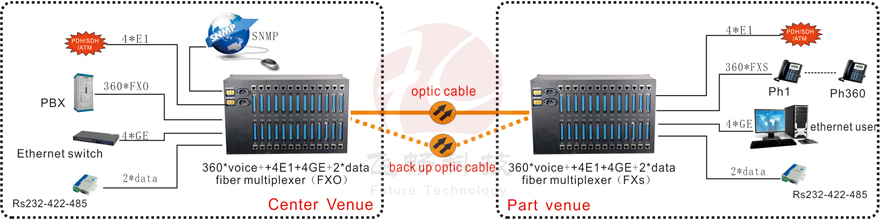

Applications  1

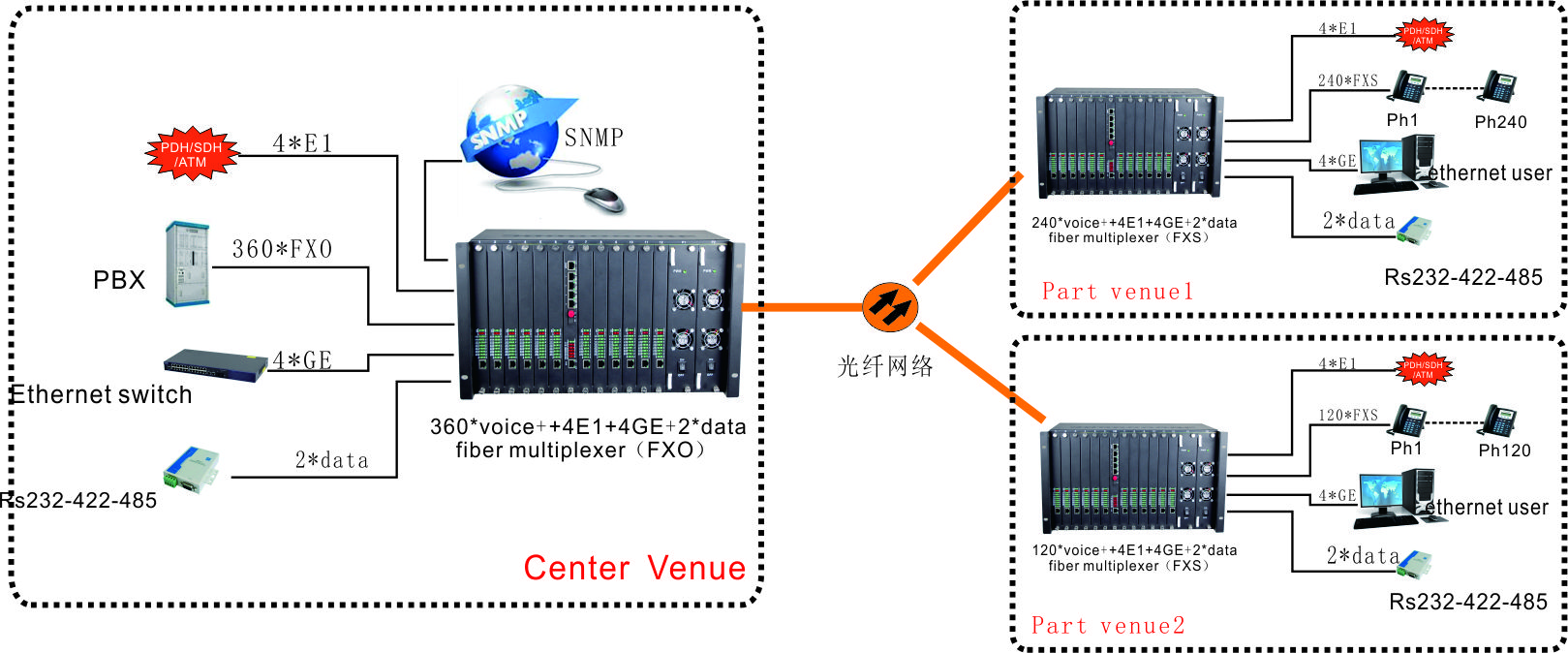

Applications  2

DataSheet Download
?
